這里還有一些來自于官方的產品資料，目前沒有中文。

The Original performance

The R 926 Compact combines the power and versatility of a standard device with a smaller footprint of a short tail excavator and is therefore an ideal solution for inner-city construction sites.  With a wide range of work equipment and options, this machine can be used for earthmoving, canal construction or can be configured for any type of demolition work.

Reliability

With over 50 years of experience in the development of crawler excavators Liebherr offers its customers machines from highest reliability. The high quality of the product is guaranteed at all stages from design to final assembly. The working conditions for the operator are made safer and safer. This recognised reliability can also be found in the many services we offer Liebherr, which were specially developed to support and satisfy our customers.

Comfort

The cab of the R 926 Compact is not only extremely comfortable and spacious, it also offers an excellent view of the working environment and is equipped with
The excavator is equipped with the latest technology, allowing the operator to exploit the full performance potential of this excavator in a very pleasant working environment.

Economy

The new maintenance concept of the R 926 Compact helps to reduce downtimes and thus increases productivity.
In addition, the extremely intelligent energy management and automatic tool change reduce operating costs.


Structure and materials used:

Undercarriage (steel and brass, CNC turned, milled and lasered)

Pre-stressed turntable with four-point support CNC machined from steel; all gears from steel C45

Hydraulic rotary union with leakage oil return for hydraulic additional function in the undercarriage (shield)

Upper carriage plate made of 6mm steel with additional weights at the rear (two 3mm plates screwed together)

Upper body covering made of plastic 3D-print (uv-resistant and robust)

boom and handle made of solid 3D print SLS parts and 5 axis CNC aluminium parts

A-frame made of steel with branded plain bearings for all pivot points

Continuous xmm bolt for work equipment

All bearings are fitted with plain bearings

Spoon made of welded steel with steel teeth in original look

Chains in perfect detailing



Technical data:

Scale: 1:14,5

Length undercarriage: 324 mm

Width crawler track (outside): 206 mm

Track width crawler track; 164 mm

Height of crawler track: mm

Maximum digging depth: 468 mm

Height to cabin roof: 211mm

Width of upper carriage: 205 mm

Weight of the excavator: 14 kg +



Drive technology:

Caterpillar drive: Industrial motors with precision steel gears in the side aisles

Multiple ball gelgert all steel gears

Chain tensioner made of steel and aluminium self-tensioning

Slewing gear: PREMACON DIRECT Drive, direct connection between slewing ring, rotary motor, slewing ring, slewing shaft with slewing block, ball bearing and adjustable.



hydraulic system

The model hydraulics were taken over from the large models R946/R956.

We use a large-volume pump and our large valves.

These offer excellent fine controllability and longevity.

The scale appearance of the hydraulic cylinders and the piping once again sets the standard.

- PREMACON/Kampshoff SILENT PUMPE DRIVE (whisper quiet pump with excellent controllability at lowest speeds)

- Optimise line cross-sections for optimum use of hydraulic power

- Hydraulic valves made of industrial steel from the company Jung Fluidtechnik

- hard piped cylinder lines

- Hydraulic cylinder with screwed heads completely dismountable; industrial seals with wiper;

  hard chrome plated piston rods; cast cylinder eyes (low internal friction thus more pressure is converted into working power)

- Large-volume tank with special internal geometry to ensure oil production even at extreme inclined positions; no foaming; no temperature problems

- Hydraulic filter integrated in the tank

- Working pressure approx. 22 bar

Optional: dozer blade and support blade with hydraulic rotary union and shut-off valve



Electronics

- Controller parameters specially designed for the pump motor

- Servonaut MFX controller for chain drive and swivel drive

- Industrial rotary union for endless turning of the upper carriage

- Special POWER LED's as headlights

- 7.5 A Power BEC

- HiTec brand servos for hydraulic valve control

- Operating voltage: 12 V Nimh or 3S Lipo cells



Special equipment or accessories not included in the basic kit

- Hydraulic set, drive set, electronics set, auxiliary hydraulics, painting and assembly

- Stone chip protection for cabin complete (roof and front sash)

- Individual stone chip protection either roof or front sash

- Quickcoupler mechanical

- Hydraulic quick coupler

- additional headlights on the boom and under the cabin

- Support and levelling blade

- Chain guide drive Heavy Duty

- Likufix system with one hydraulic circuit and 2 electric control circuits (MFX controller)

- Sound module and speakers

- Backhoe bucket with cutting edge TLS 1400

- Backhoe bucket with cutting edge TLS 850



Shipping costs for Germany without islands (delivery by forwarding agent) 118,00 Euro.

2000 Euro deposit when ordering a special colour.

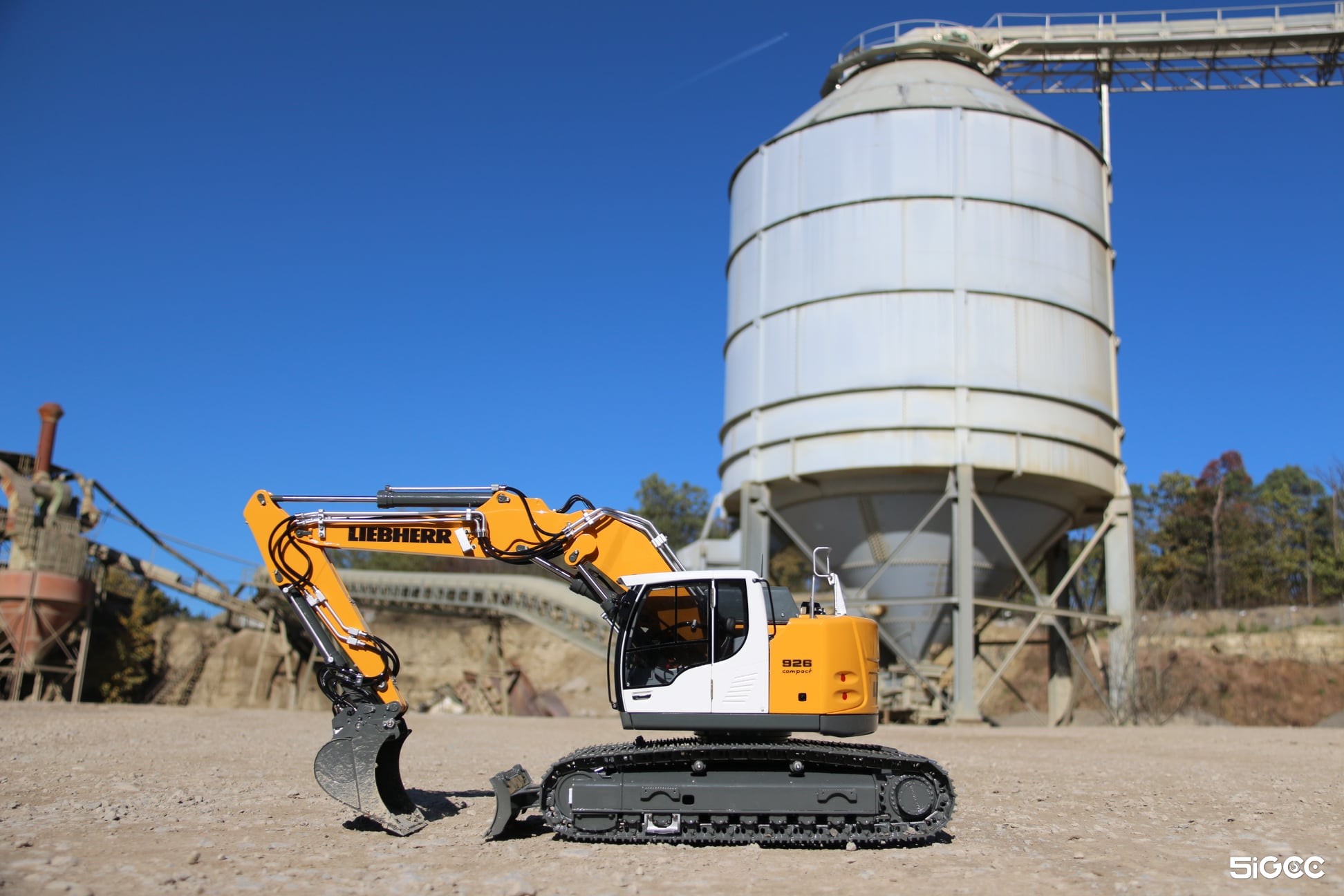

Pictures show the finished model with extra equipment. The basic kit is delivered unpainted and not assembled.

利勃海爾R926模型挖機自動換鏟功能演示

可能你已經注意到了，視頻中這臺R926 Compact挖機模型采用了利勃海爾的LIKUFIX油路自動快接系統，提供了一個液壓鎖止機構和兩個液壓回路。
除此之外，你還能看到兩個擴展的電路系統，它將由Servonaut MFX控制器控制，從而為其他有趣的附件提供更豐富的功能。這個設計是R926獨有的，我們稱之為：Scale in a new dimension！



利勃海爾LIKUFIX系統的更多資料可以點擊下方鏈接進一步了解：
http://mtkcard.cn/forum.php?mod=viewthread&tid=431&extra=page%3D1




除了標準鏟之外，PREMACON目前以為926推出了兩款擴展工具。
此外，已知的情況是：為926設計的鏟和工具，與其他機型是不兼容的，只能用于926.
